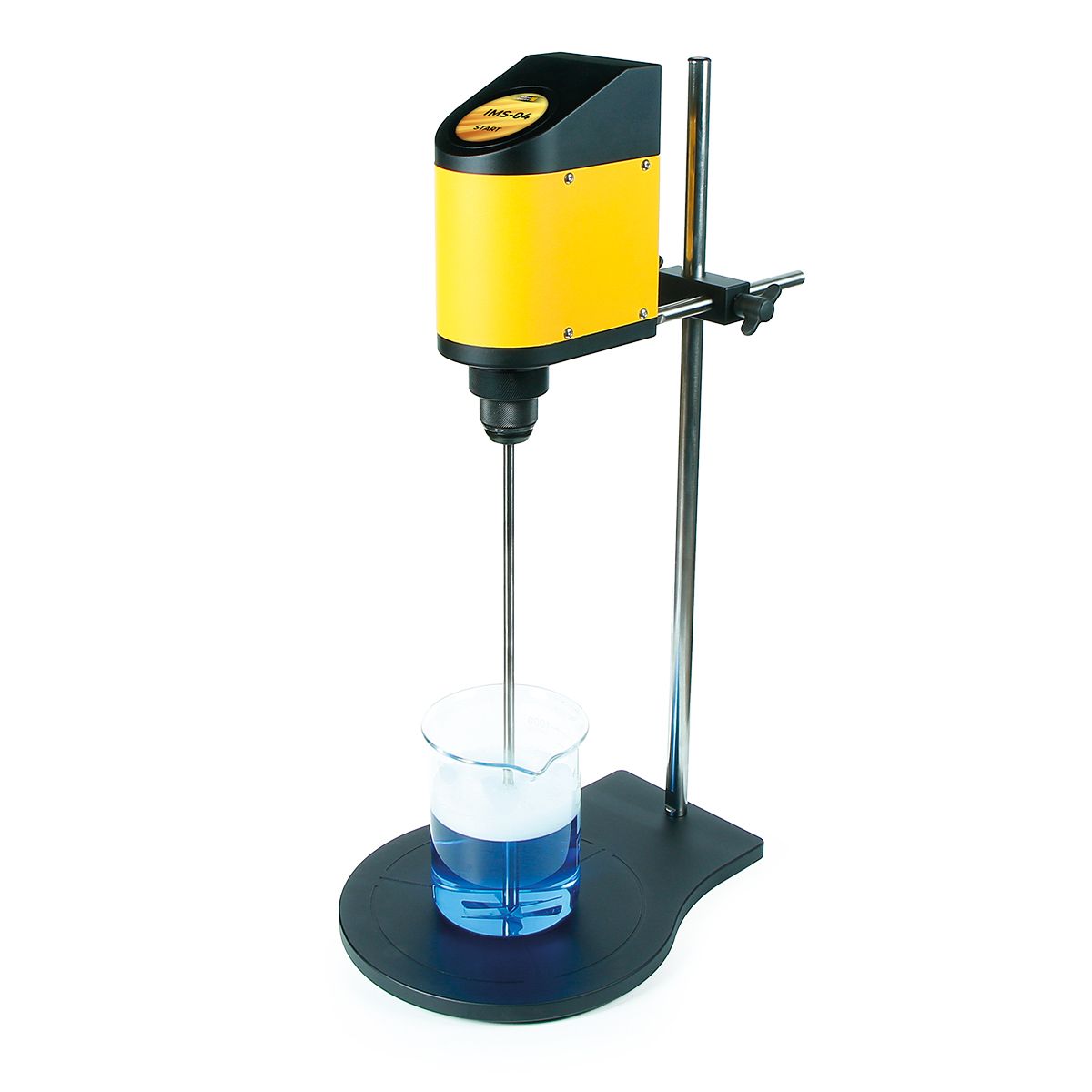

IMS-04 Overhead Stirrer — Powerful, High Torque, Heavy Duty

The IMS-04 overhead stirrer is a high torque laboratory mixing system designed for demanding stirring applications involving higher viscosity materials and larger mixing volumes. It combines powerful brushless DC motor performance with touchscreen based digital control to ensure stable and reliable operation in research, chemistry, and formulation laboratories. In addition, advanced torque capability and robust mechanical design make the IMS-04 suitable for heavy duty laboratory mixing tasks.

Key Features of the IMS-04 overhead stirrer

High torque mixing performance

The IMS-04 is designed for applications requiring stronger mixing power. Its high torque output allows stable and reliable stirring even when working with viscous materials and larger volumes.

Precise digital control

The IMS-04 operates with touchscreen based digital control for accurate and easy speed adjustment. This helps users maintain stable mixing conditions during laboratory processes.

Reliable heavy duty operation

Powered by a brushless DC motor, the IMS-04 offers smooth and reliable operation with a speed range of 50–2000 RPM and maximum torque of 0.6 Nm.

Flexible shaft compatibility

The keyless chuck system supports shafts between 1–10 mm, allowing quick installation and easy replacement of different stirring tools.

Technical Specifications

Model Description: High Torque Heavy Duty Model
Motor: Brushless DC motor
Rated Power: 100 W
Rated Current: 4.4 A
Rated Voltage: 24 V
Maximum Torque: 0.6 Nm
Speed Range: 50–2000 RPM
Operation: Digital control via touchscreen
Speed Accuracy: ±2%
Maximum Viscosity: 100,000 mPa.s
Maximum Stirring Volume: 40 L (H₂O)
Chuck Shaft Range: 1–10 mm
Impeller Shaft Length: 27, 47 cm
Timer: Yes
Power Supply: 100–240 VAC, 50/60 Hz
Dimensions: 250 × 756 × 327.8 mm
Weight: 8 kg (17.6 lb)
Standard Accessories: 4-Blade Paddle Impeller (FP-60), Universal stand with 60 cm extension arm
