Compact single channel syringe pumps for precise, stable and repeatable fluid delivery — from basic infusion workflows to bidirectional control, recipe memory and programmable dosing protocols.
The Yellow Labware IPS-12 Series is designed around single channel precision. Each model shares the same compact laboratory footprint, touchscreen operation and wide syringe compatibility, while model options add withdrawal control and recipe memory depending on the protocol.
Each IPS-12 model is positioned for a different level of control, from standard infusion to automated recipe-based bidirectional operation.

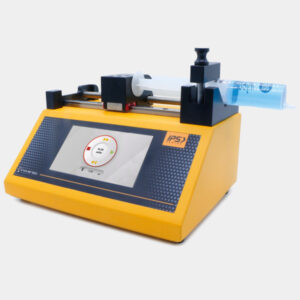

Single channel syringe pump for precise fluid infusion.
IPS-12 is the clean entry point of the range, designed for stable single channel infusion where controlled flow, compact setup and repeatability matter.

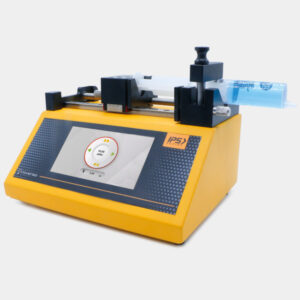

Single channel syringe pump with infusion and withdrawal support.
IPS-12R adds bidirectional operation for workflows that require both controlled delivery and controlled withdrawal in one compact laboratory system.

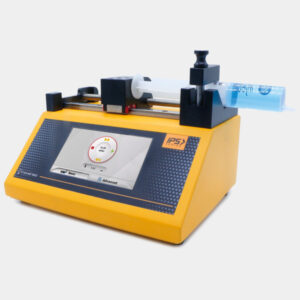

Programmable single channel infusion pump with recipe save and recall.
IPS-12S is built for repeatable infusion protocols where saved parameters, multi-step dosing and consistent workflow repetition are important.

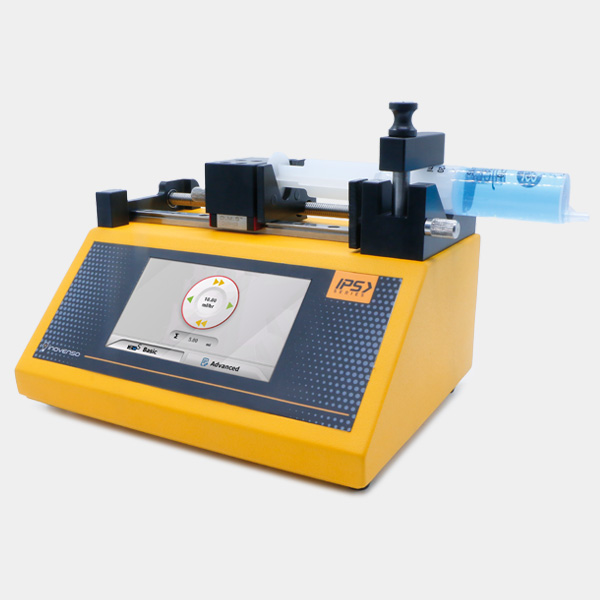

Programmable infusion and withdrawal syringe pump with recipe management.
IPS-12RS is the most capable IPS-12 model, combining bidirectional operation with recipe save and recall for flexible process control.

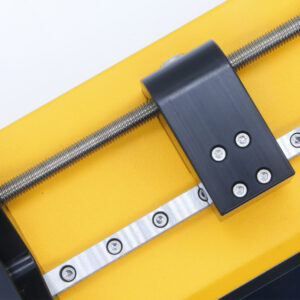

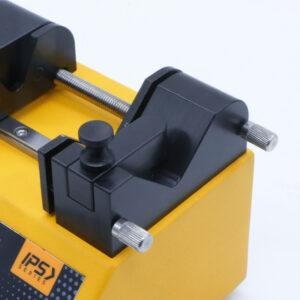

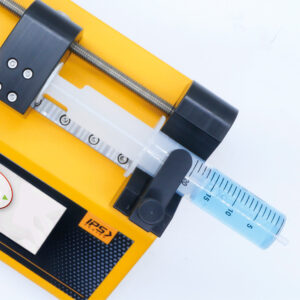

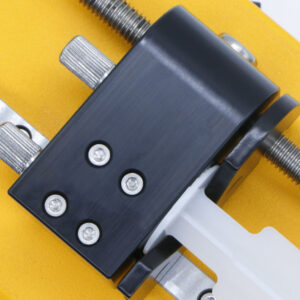

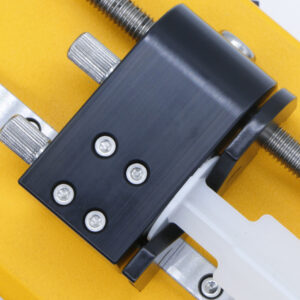

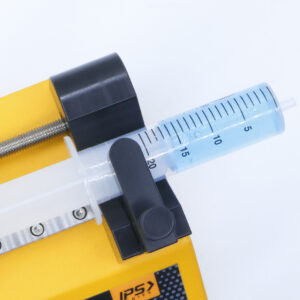

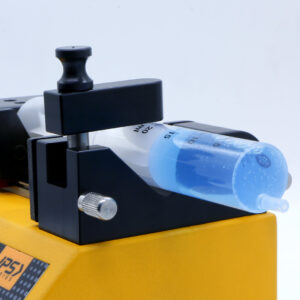

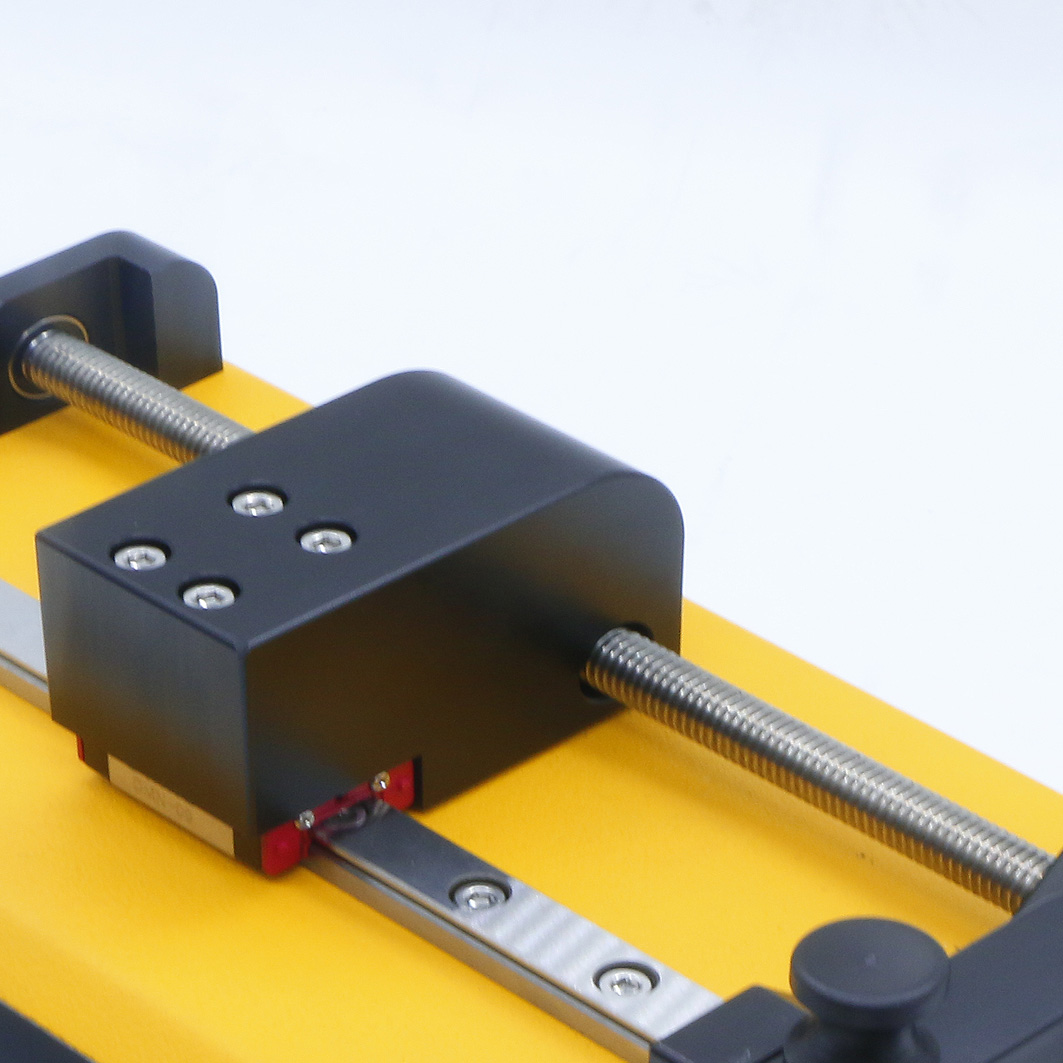

The compact body, syringe clamp, linear rail and touchscreen interface are arranged for practical laboratory operation and fast syringe loading.
Compare the IPS-12 range by operation mode, recipe capability, dimensions, weight and best workflow fit.
| Feature | IPS-12 | IPS-12R | IPS-12S | IPS-12RS |
|---|---|---|---|---|
| Positioning | Single channel infusion pump | Single channel infusion / withdrawal pump | Single channel infusion pump with recipe memory | Infusion / withdrawal pump with recipe management Most advanced |
| Syringe Capacity | 1 syringe | 1 syringe | 1 syringe | 1 syringe |
| Syringe Type | Glass, plastic, steel | Glass, plastic, steel | Glass, plastic, steel | Glass, plastic, steel |
| Syringe Size | Hamilton 0.5 µL to Monoject 140 mL | Hamilton 0.5 µL to Monoject 140 mL | Hamilton 0.5 µL to Monoject 140 mL | Hamilton 0.5 µL to Monoject 140 mL |
| Flow Rate | 17.89 pL/min to 121.51 mL/min | 17.89 pL/min to 121.51 mL/min | 17.89 pL/min to 121.51 mL/min | 17.89 pL/min to 121.51 mL/min |
| Accuracy / Reproducibility | <3% / <3% | <3% / <3% | <3% / <3% | <3% / <3% |
| Motor Type | Stepper motor | Stepper motor | Stepper motor | Stepper motor |
| Step Resolution | 357 nm/µstep | 357 nm/µstep | 357 nm/µstep | 357 nm/µstep |
| Operation Mode | Infusion | Infusion / withdrawal | Infusion + recipe workflow | Infusion / withdrawal + recipe workflow |
| Recipe Save / Recall | — | — | Yes | Yes |
| Repeat Cycles | — | — | Up to 50 cycles | Up to 50 cycles |
| Power Supply | 12 VDC 1A | 12 VDC 1A | 12 VDC 1A | 12 VDC 1A |
| Dimensions | W 200 × L 170 × H 137 mm | W 200 × L 170 × H 137 mm | W 200 × L 170 × H 137 mm | W 210 × L 170 × H 137 mm |
| Weight | 2.1 kg | 2.2 kg | 2.1 kg | 2.2 kg |
| Best For | Simple and consistent infusion-type processes. | Applications requiring bidirectional flow control. | Repetitive infusion protocols and automated sequences. | Flexible process control with bidirectional operation and recipe automation. |
Match the model to the operation. The right choice depends on whether your workflow needs withdrawal control, recipe memory or repeatable automated cycles.
Best for simple, stable and cost-effective single channel infusion workflows.
View IPS-12 →Best when the protocol requires both infusion and withdrawal in one compact system.
View IPS-12R →Best for repeatable infusion procedures, saved parameters and multi-step dosing sequences.
View IPS-12S →Best when you need infusion, withdrawal and recipe management together.
View IPS-12RS →Across the IPS-12 range, the platform focuses on accurate syringe movement, clear touchscreen operation, compact setup and practical daily usability for laboratory and process development environments.
IPS-12 syringe pumps support controlled fluid delivery where stable flow, repeatability and compact setup matter.
Controlled low-flow delivery for microchannels, small-volume experiments and method development.
Stable reagent delivery for controlled testing environments and repeatable laboratory protocols.
Precise fluid handling for research, formulation testing, sample preparation and development workflows.
Consistent dosing for polymers, coatings, nanomaterials and controlled process experiments.
Share syringe size, target flow rate, fluid type and whether your protocol needs withdrawal or recipe control. We’ll help match the right IPS-12 model to your workflow.
