Dual channel syringe pumps for synchronized, simultaneous fluid delivery. The IPS-13 Series is built for paired syringes, matched flow control, gradient workflows, parallel dosing and repeatable two-stream laboratory processes.
The Yellow Labware IPS-13 Series is designed for laboratories that need simultaneous operation from two interdependent syringe channels. Each model supports matched dual-stream delivery, wide syringe compatibility and precise touchscreen control, while advanced versions add withdrawal and recipe memory.
IPS-13 models share the same synchronized dual-channel architecture. The difference is whether your workflow needs withdrawal control, recipe memory or both.
Dual interdependent syringe pump for simultaneous fluid infusion.

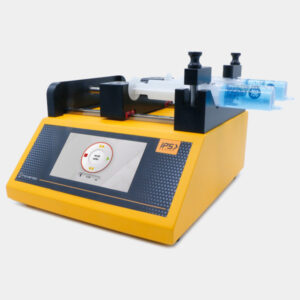

IPS-13 is the standard dual channel model, designed for synchronized infusion from two syringes in compact laboratory and research workflows.
Dual channel syringe pump with synchronized infusion and withdrawal support.

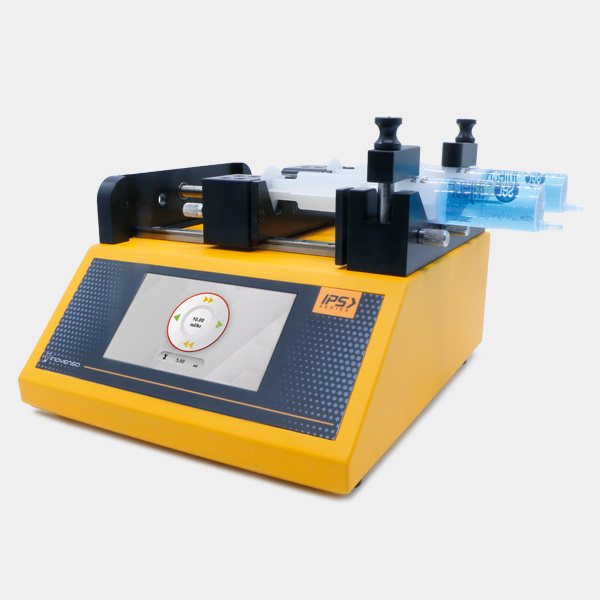

IPS-13R adds bidirectional operation for protocols that require coordinated fluid delivery and withdrawal across two interdependent syringes.
Programmable dual channel infusion pump with recipe save and recall.
IPS-13S is built for synchronized dual-channel protocols that need repeatable recipe-based operation, stored programs and automated cycle repetition.
Programmable dual channel infusion/withdrawal pump with recipe management.
IPS-13RS is the most capable IPS-13 model, combining synchronized bidirectional operation with recipe save and recall for automated dual-stream workflows.

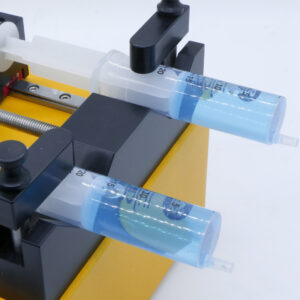

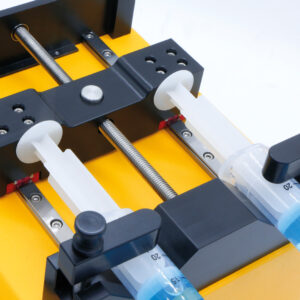

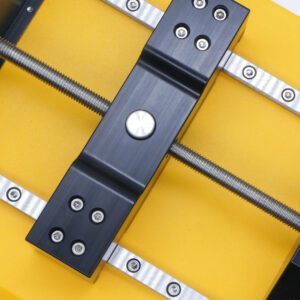

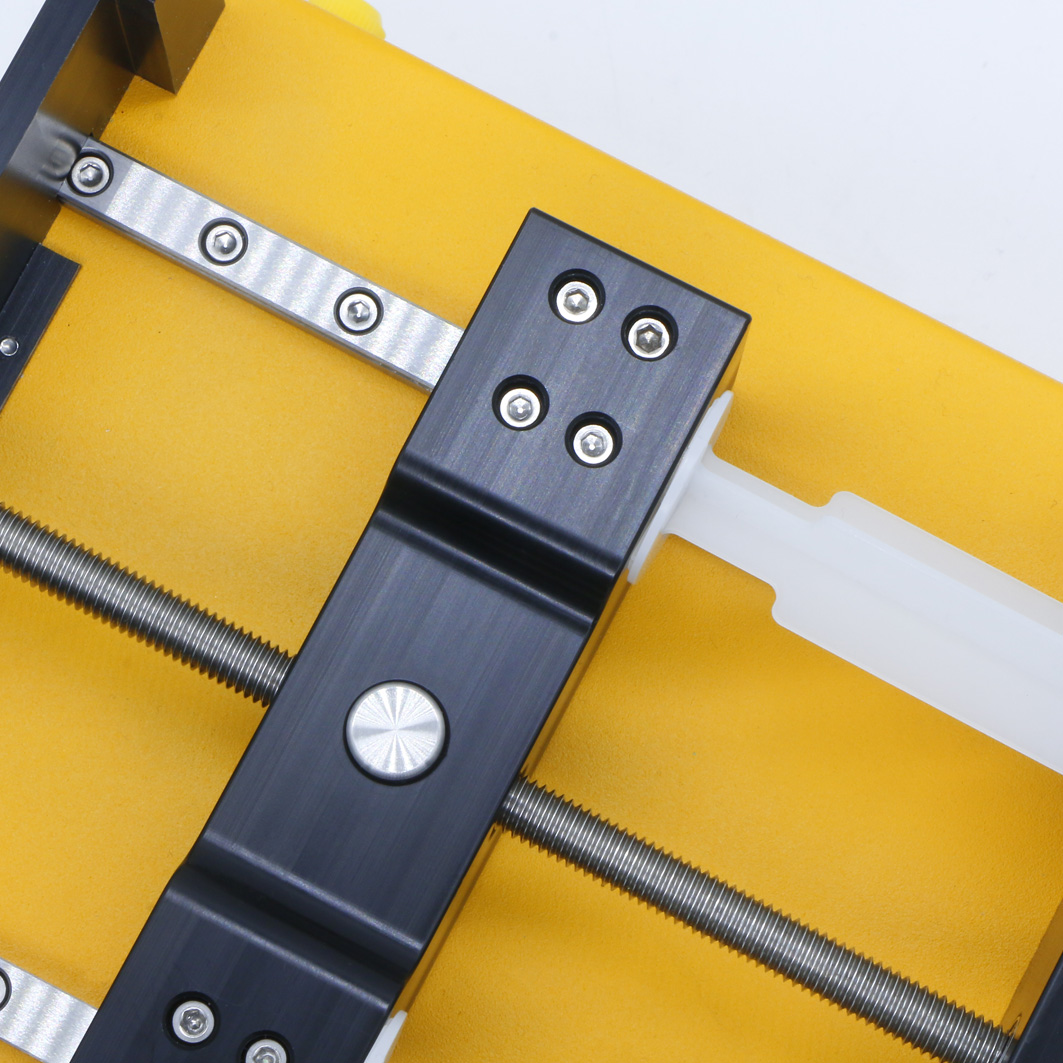

The IPS-13 platform combines a compact touchscreen body with dual syringe holders, a stable rail system and coordinated plunger movement for two-channel operation.
Compare the IPS-13 range by operation mode, recipe capability, dimensions, weight and best workflow fit.
| Feature | IPS-13 | IPS-13R | IPS-13S | IPS-13RS |
|---|---|---|---|---|
| Positioning | Dual channel infusion pump | Dual channel infusion / withdrawal pump | Dual channel infusion pump with recipe memory | Dual channel infusion / withdrawal pump with recipe management Most advanced |
| Syringe Capacity | 2 interdependent syringes | 2 interdependent syringes | 2 interdependent syringes | 2 interdependent syringes |
| Syringe Type | Glass, plastic, steel | Glass, plastic, steel | Glass, plastic, steel | Glass, plastic, steel |
| Syringe Size | Hamilton 0.5 µL to Monoject 140 mL | Hamilton 0.5 µL to Monoject 140 mL | Hamilton 0.5 µL to Monoject 140 mL | Hamilton 0.5 µL to Monoject 140 mL |
| Flow Rate | 17.89 pL/min to 121.51 mL/min | 17.89 pL/min to 121.51 mL/min | 17.89 pL/min to 121.51 mL/min | 17.89 pL/min to 121.51 mL/min |
| Accuracy / Reproducibility | <1% / <1% | <1% / <1% | <1% / <1% | <1% / <1% |
| Motor Type | Stepper motor | Stepper motor | Stepper motor | Stepper motor |
| Step Resolution | 357 nm/µstep | 357 nm/µstep | 357 nm/µstep | 357 nm/µstep |
| Linear Force | 20 kg total / 15 kg each syringe | 20 kg total / 15 kg each syringe | 20 kg total / 15 kg each syringe | 20 kg total / 15 kg each syringe |
| Operation Mode | Infusion | Infusion / withdrawal | Infusion + recipe workflow | Infusion / withdrawal + recipe workflow |
| Recipe Save / Recall | — | — | Yes | Yes |
| Repeat Cycles | — | — | Up to 50 cycles | Up to 50 cycles |
| Power Supply | 12 VDC 1A | 12 VDC 1A | 12 VDC 1A | 12 VDC 1A |
| Dimensions | W 200 × L 200 × H 143 mm | W 211 × L 250 × H 143 mm | W 200 × L 250 × H 143 mm | W 211 × L 250 × H 143 mm |
| Weight | 2.9 kg | 3.2 kg | 2.9 kg | 3.2 kg |
| Best For | Synchronized dual infusion and parallel delivery. | Dual-channel workflows requiring coordinated withdrawal. | Repeatable synchronized infusion recipes. | Automated bidirectional dual-channel processes. |
Choose by workflow: basic synchronized infusion, bidirectional control, recipe automation or the full RS configuration.
Best for simultaneous delivery from two interdependent syringes.
View IPS-13 →Best when two synchronized channels need both infusion and withdrawal.
View IPS-13R →Best for repeatable dual-channel infusion protocols and saved workflows.
View IPS-13S →Best for synchronized infusion/withdrawal with programmable recipe control.
View IPS-13RS →Across the IPS-13 range, the platform focuses on coordinated syringe movement, clear touchscreen operation, compact setup and repeatable dual-stream fluid handling.
IPS-13 syringe pumps are ideal when two fluids must be delivered together, compared in parallel or controlled as synchronized streams.
Synchronized delivery for two-stream chips, gradient generation and small-volume experiments.
Coordinated flow for core-shell and multi-solution nanofiber research workflows.
Dual fluid delivery for controlled ratios, formulation development and repeatable mixing protocols.
Simultaneous dosing for comparative studies, analytical testing and process development.
Share syringe sizes, target flow rates, fluid types and whether your protocol needs withdrawal or recipe control. We’ll help match the right IPS-13 model to your application.
