IDC-20 Dip Coater Systems

Precision lab-scale dip coating system for smooth, repeatable and controllable thin film deposition. Designed for R&D labs working in material science, nanotechnology, biomedical engineering, surface treatment and functional coating development.

View IDC-20 Technical Specs Request a Quote
0.0015mm/min Minimum Drawing Speed
600mm/min Maximum Drawing Speed
200 mmMaximum Stroke Length
20 × 999Programs and Cycles

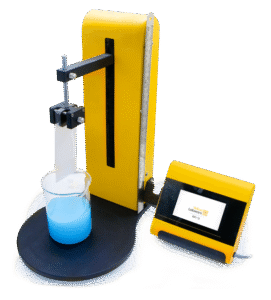

IDC-20 dip coater system with beaker and touchscreen interface
StrokeUp to 200 mm
LoadUp to 2 kg
Control4.3” LCD interface
Thin Film Coating Precision Layer Control Controlled dipping, dwell and withdrawal for repeatable coatings on substrates, membranes and functional surfaces.
Product Range

Repeatable thin film coating, made practical

IDC-20 is designed to control the critical parameters of dip coating: dipping speed, dwell time, withdrawal speed, drying time, stroke length and repeat cycles. The system helps researchers create uniform coatings through programmable vertical motion and controlled sample handling.

Precise withdrawal control Drawing speed range from 0.0015 mm/min to 600 mm/min for coating thickness control.
Programmable coating recipes Save and recall up to 20 programs with up to 999 cycles for repeatable layer formation.
Compact lab-scale footprint 440 × 330 × 446 mm design for R&D labs, benches and controlled coating environments.
Chemical-resistant construction Built for solvent and coating solution workflows in material and surface research.
System Model

IDC-20 precision dip coater

A lab-scale dip coating system engineered for controlled film deposition, smooth vertical motion and programmable coating workflows.

Request Pricing

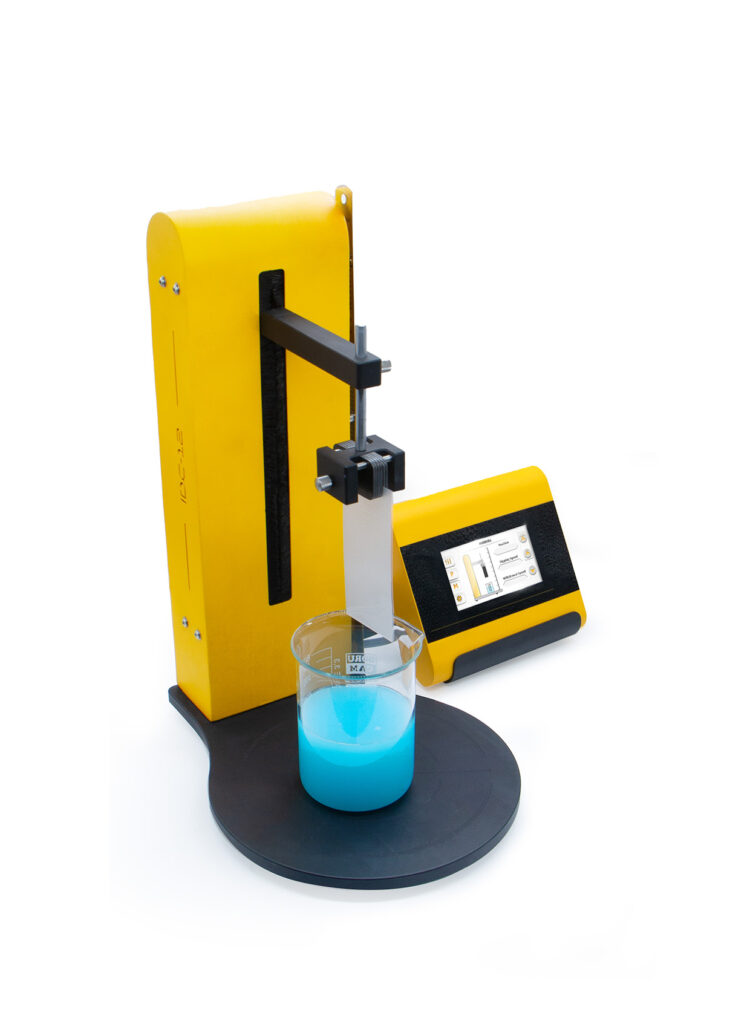

IDC-20 dip coater system product view
Lab-Scale Dip Coater

IDC-20

Precision thin film coating system with programmable dipping and withdrawal control.

IDC-20 is built for research teams that need consistent coating behavior across multiple samples and repeated cycles. It combines a DC stepping motor, lead screw drive, 4.3” LCD interface and PC connectivity in a compact benchtop system.

  • Stroke LengthMax. 200 mm
  • Drawing Speed0.0015–600 mm/min
  • Program Memory20 programs × 999 cycles
  • User Interface4.3” LCD color screen
  • Load CapacityUp to 2 kg
  • Sample CapacityUp to 5 membranes
  • ConnectivityPC connectivity available
  • Weight9 kg
Request a Quote Datasheet User Manual View Store Category
Coating Process

Control every stage of the dip coating cycle

Dip coating quality depends on motion control, dwell time, withdrawal rate and environmental consistency. IDC-20 helps users repeat those process steps with saved programs and cycle control.

01 · Dip The substrate is lowered into the coating solution at the defined dipping speed and position.
02 · Dwell The sample remains immersed for a programmed time to support solution interaction and wetting.
03 · Withdraw The substrate is lifted at a controlled drawing speed to form a uniform coating layer.
04 · Repeat Saved programs can repeat coating cycles for multilayer structures and process consistency.
Product Views

Clean product visuals for a premium lab page

The full-size product image is used for large sections. Smaller render assets stay in compact support cards to avoid pixelation.

IDC-20 dip coater clean product view
IDC-20 dip coater system for controlled thin film coating workflows
IDC-20 dip coater product render
Product Render Compact Benchtop System Vertical dip arm, beaker platform and separate touchscreen control interface.
IDC-20 dip coater product photo
Coating Setup Substrate and Beaker Designed for stable sample positioning and controlled immersion into coating solution.
Dip coater lab workflow visual
Lab Workflow Thin Film Research Suitable for R&D environments working with films, surfaces and functional coatings.
Dip coater touchscreen and arm structure
Control Recipe-Based Operation Program memory and repeat cycles help standardize coating protocols.
Technical Details

IDC-20 technical specifications

Key motion, control, capacity and physical specifications for the IDC-20 dip coater system.

Specification IDC-20 Dip Coater Why it matters
Positioning Lab-scale precision dip coater for thin film coating Designed for repeatable coating workflows in research and development environments.
Actuator DC stepping motor Supports smooth and controlled vertical motion.
Drive Mechanism Lead screw Provides stable movement for dipping and withdrawal steps.
Stroke Length Maximum 200 mm Allows controlled movement for different sample and solution heights.
Drawing Speed Range 0.0015–600 mm/min Critical for coating thickness and film uniformity control.
Dipping / Withdrawal Speed 0–10 mm/sec Supports controlled immersion and extraction profiles.
Program Memory 20 programs × 999 cycles Enables repeatable multilayer coating and recipe-based operation.
User Interface 4.3-inch LCD color screen Clear control interface for manual and programmed workflows.
PC Connectivity Available Supports advanced control and process management.
Maximum Load Capacity 2 kg Supports stable operation with sample holder and substrate setups.
Sample / Membrane Capacity Up to 5 membranes Useful for repeated sample preparation and coating workflows.
Dimensions 440 × 330 × 446 mm Compact benchtop footprint for laboratory environments.
Weight 9 kg Stable but still practical for lab bench installation.
Power Input 110–220 V, 50/60 Hz Compatible with standard laboratory electrical infrastructure.
Power Consumption Max. 36 W Low power consumption for benchtop lab use.
Construction Chemical and solvent resistant materials Suitable for coating solutions and solvent-based research environments.
Use Case Guide

When should you choose IDC-20?

IDC-20 is most useful when your coating workflow depends on repeatable speed, controlled immersion and consistent withdrawal.

Thin Film Control

Choose IDC-20

Best for smooth and repeatable thin film deposition on research substrates.

View Specs →
Multilayer Coating

Use Recipes

Program memory and repeat cycles help standardize repeated coating passes.

View Process →
Surface Research

Control Withdrawal

Fine drawing speed control supports uniform coating and layer thickness studies.

Applications →
Not Sure?

Ask Us

Tell us your substrate, solution, target coating area and required speed range.

Request Help →
Platform Strengths

Built for precision, repeatability and coating control

IDC-20 combines controlled vertical motion, programmable recipes, chemical-resistant construction and compact benchtop usability for repeatable thin film research.

200 Maximum stroke length in millimeters for controlled coating travel.
0.0015 Minimum drawing speed in mm/min for fine withdrawal control.
20 Saveable programs for repeatable coating recipes and workflow memory.
2 kg Maximum load capacity for sample holder and coating setup flexibility.
Application Areas

Dip coating applications

IDC-20 supports controlled thin film coating workflows across material science, nanotechnology, biomedical engineering and surface treatment research.

Nanomaterials

Controlled coating workflows for nanomaterial films, layered structures and functional surfaces.

Functional Films

Repeatable deposition for thin films used in optical, electronic, protective or responsive coatings.

Biomedical Research

Surface modification and coating of substrates, membranes and biomaterial research samples.

Sensors & Substrates

Thin layer coating on sensors, glass slides, membranes, metal pieces and experimental substrates.

Need help choosing?

Tell us your coating workflow.

Share your substrate type, coating solution, target layer thickness, required withdrawal speed and whether you need single-layer or multilayer coating. We’ll help confirm the right IDC-20 configuration for your lab.

Request a Quote Download Datasheet View Store Category
