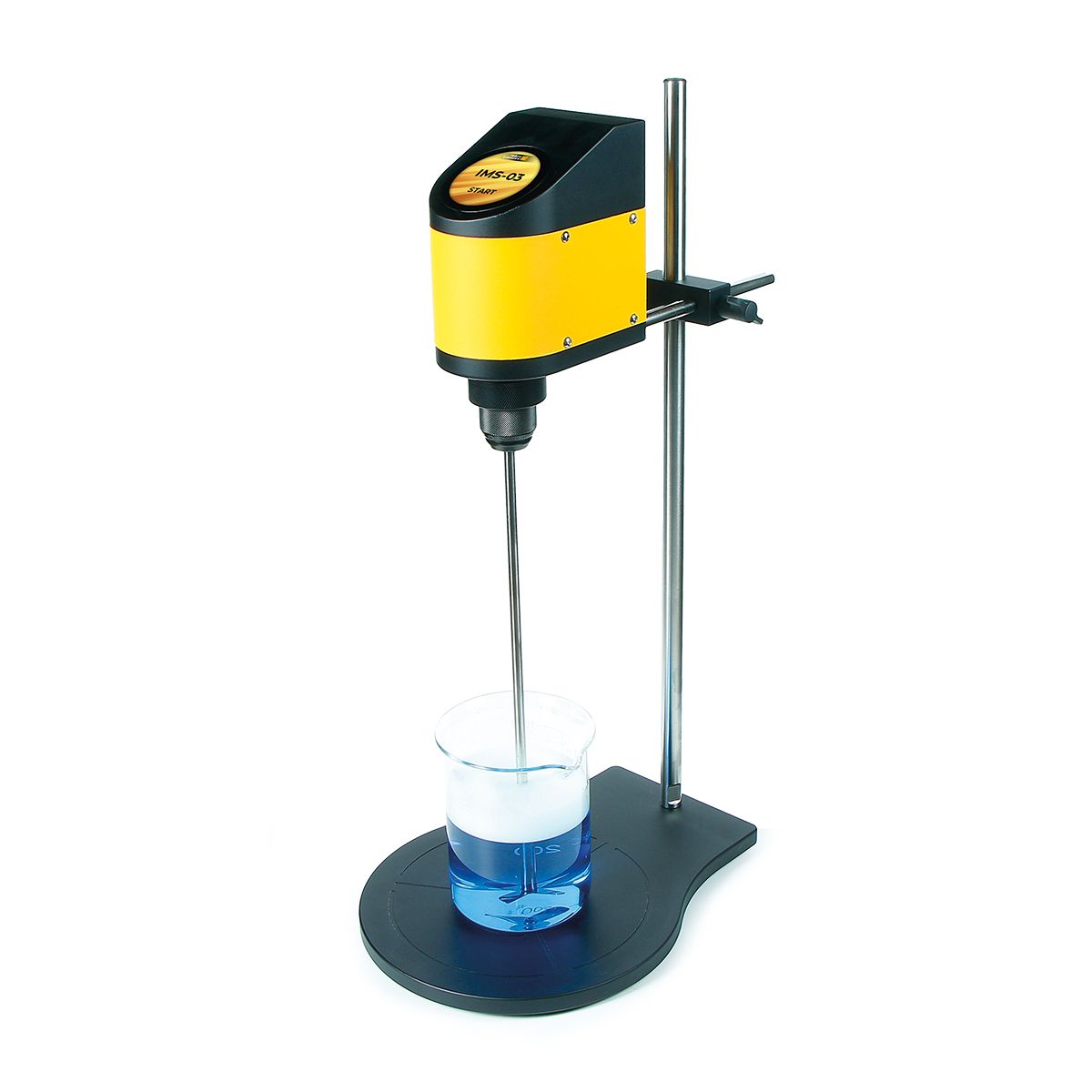

IMS-03 Overhead Stirrer — Powerful, Precise, Reliable

The IMS-03 overhead stirrer is a high torque laboratory mixing system designed for demanding stirring applications involving higher viscosity materials and larger mixing volumes. It combines powerful brushless DC motor performance with touchscreen based digital control to deliver stable and precise mixing in research, chemistry, and formulation laboratories. In addition, advanced control features and robust mechanical design allow the IMS-03 to operate reliably during long laboratory processes and more demanding mixing conditions.

Key Features of the IMS-03 overhead stirrer

High torque mixing capability

The IMS-03 is designed for applications requiring stronger mixing performance. Its high torque output allows stable stirring even when working with more viscous materials.

Precise digital control

The IMS-03 operates with touchscreen based digital control for accurate and easy speed adjustment. This helps users maintain stable mixing conditions during laboratory processes.

Stable brushless motor performance

Powered by a brushless DC motor, the IMS-03 offers smooth and reliable operation with a speed range of 50–2000 RPM and maximum torque of 0.35 Nm.

Flexible shaft compatibility

The keyless chuck system supports shafts between 1–10 mm, allowing quick installation and easy replacement of different stirring tools.

Technical Specifications

Model Description: High Torque Model
Motor: Brushless DC motor
Rated Power: 80 W
Rated Current: 4.4 A
Rated Voltage: 24 V
Maximum Torque: 0.35 Nm
Speed Range: 50–2000 RPM
Operation: Digital control via touchscreen
Speed Accuracy: ±2%
Maximum Viscosity: 50,000 mPa.s
Maximum Stirring Volume: 20 L (H₂O)
Chuck Shaft Range: 1–10 mm
Impeller Shaft Length: 27, 47 cm
Timer: Yes
Power Supply: 100–240 VAC, 50/60 Hz
Dimensions: 250 × 756 × 327.8 mm
Weight: 7.5 kg (16.5 lb)
