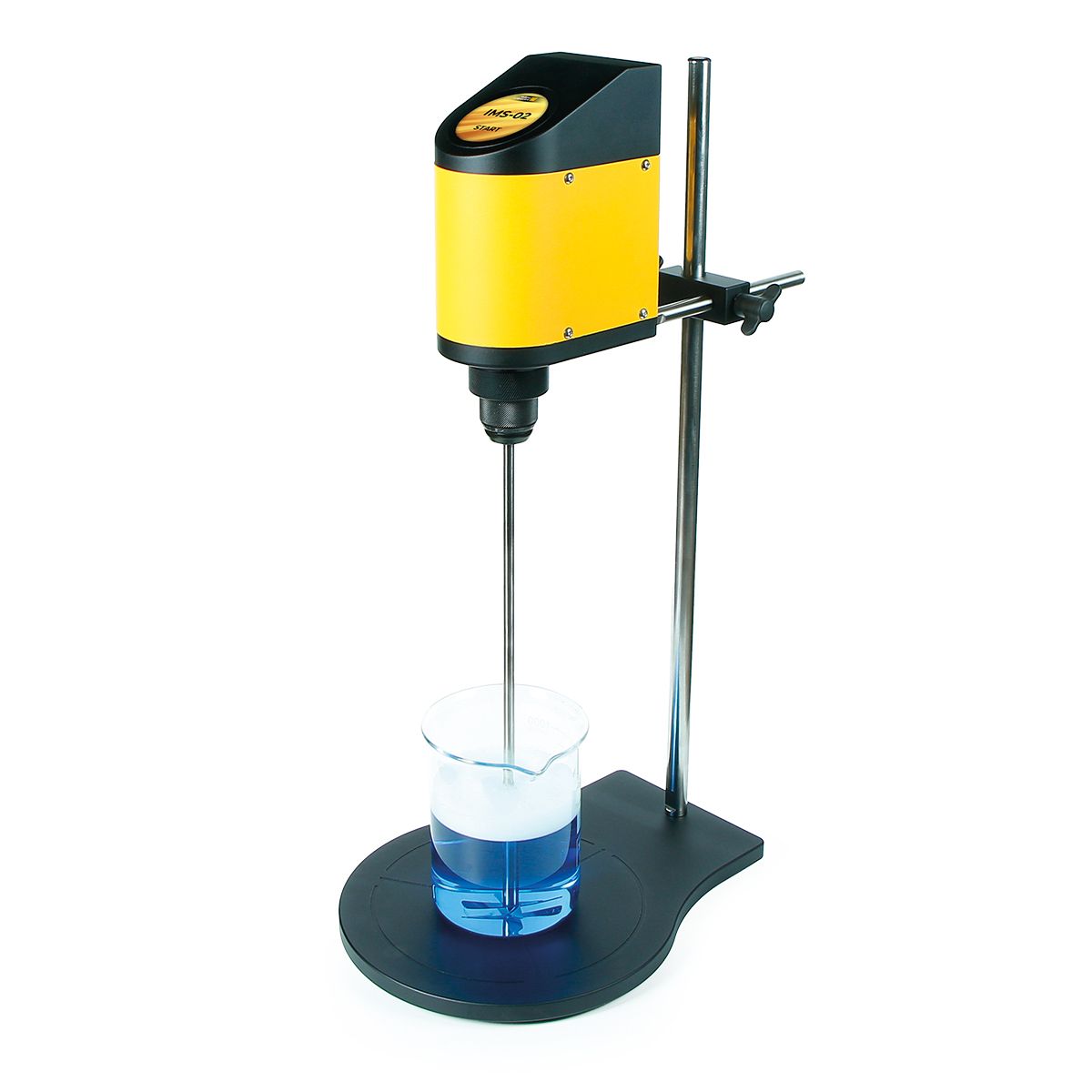

IMS-02 Overhead Stirrer — Advanced, Precise, User-Friendly

The IMS-02 overhead stirrer is an advanced low torque laboratory mixing system designed for controlled and repeatable stirring applications. It combines stable brushless DC motor performance with touchscreen based digital control for reliable operation in research, chemistry, and formulation laboratories. In addition, recipe functionality, buzzer support, and bidirectional stirring make the IMS-02 a more flexible option for users who need greater control in daily workflows.

Key Features of the IMS-02 overhead stirrer

Precise digital control
The IMS-02 operates with touchscreen based digital control for accurate and easy speed adjustment. This helps users maintain stable mixing conditions during laboratory processes.

Recipe support for repeatable workflows
Unlike the basic model, the IMS-02 supports recipe and recall mode with up to 4 steps. As a result, it is better suited for repeatable laboratory procedures and controlled mixing tasks.

Bidirectional stirring
The system supports both CW and CCW stirring directions, providing more flexibility for different formulations and mixing needs.

Stable low torque performance
Powered by a brushless DC motor, the IMS-02 offers smooth and reliable operation with a speed range of 100–2000 RPM and maximum torque of 0.16 Nm.

Model Description: Advanced Low Torque Model
Motor: Brushless DC motor
Rated Power: 50 W
Rated Current: 3.3 A
Rated Voltage: 24 V
Maximum Torque: 0.16 Nm
Speed Range: 100–2000 RPM
Operation: Digital control via touchscreen
Speed Accuracy: ±2%
Maximum Viscosity: 10,000 mPa.s
Maximum Stirring Volume: 13 L (H₂O)
Recipe/Recall Mode: Up to 4 Steps
Buzzer Option: Yes
Stirring Direction: CW/CCW
Chuck Shaft Range: 1–10 mm
Impeller Shaft Length: 27, 47 cm
Timer: Yes
Power Supply: 100–240 VAC, 50/60 Hz
Dimensions: 250 × 756 × 327.8 mm
Weight: 7.5 kg (16.5 lb)
Standard Accessories: 4-Blade Paddle Impeller (FP-60), Universal stand with 60 cm extension arm
