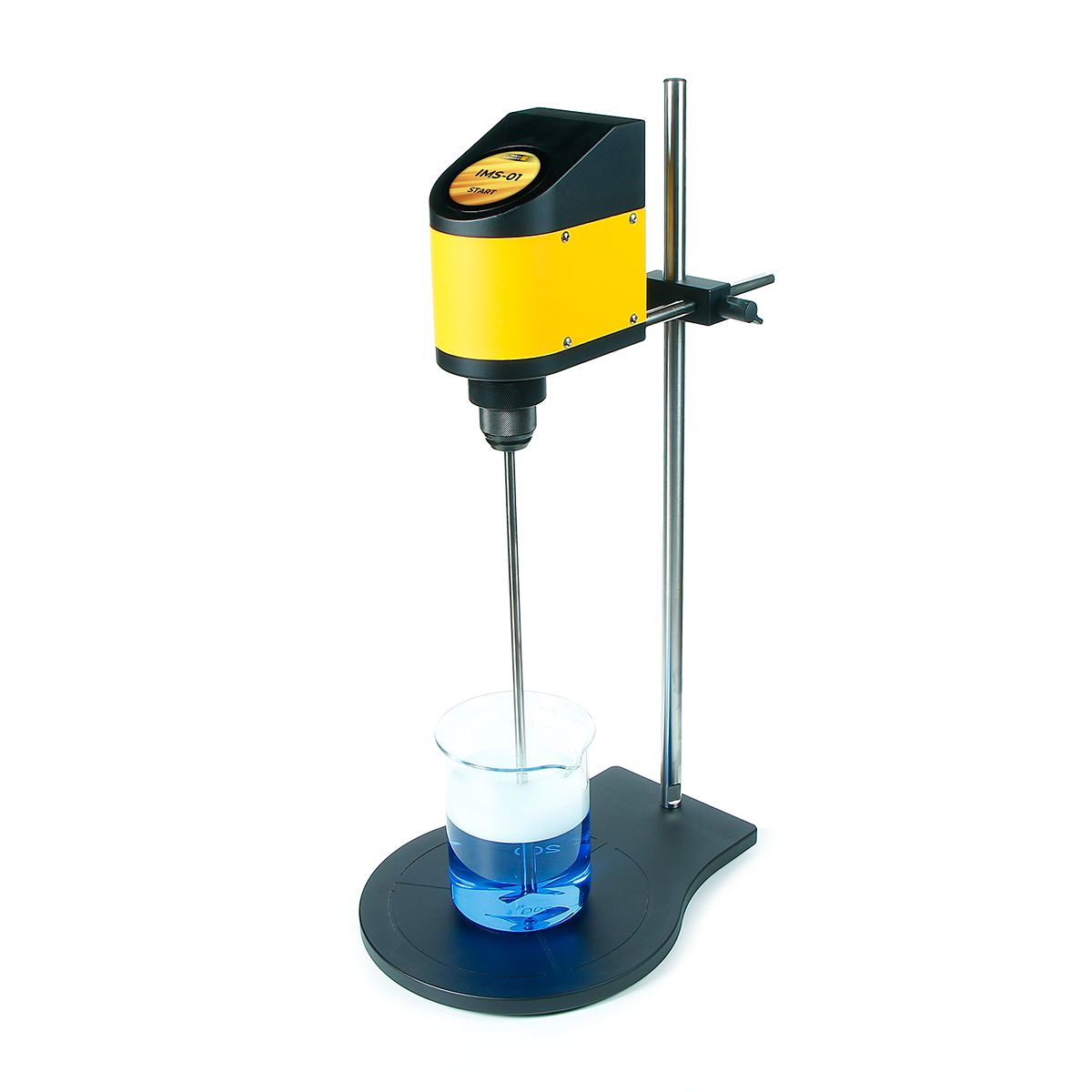

IMS-01 Overhead Stirrer — Precise, Reliable, Compact

The IMS-01 overhead stirrer is a precision laboratory mixing system designed for stable and repeatable stirring applications. It combines reliable brushless DC motor performance with touchscreen based digital control to deliver consistent mixing results in research, chemistry, and formulation laboratories. In addition, its compact design and universal stand system make the IMS-01 easy to integrate into daily laboratory workflows while maintaining precise and controlled mixing conditions.

Key Features of the IMS-01 overhead stirrer

Precise digital control

The IMS-01 operates with touchscreen based digital control for accurate and easy speed adjustment. This helps users maintain stable mixing conditions during laboratory processes.

Stable low torque performance

Powered by a brushless DC motor, the IMS-01 offers smooth and reliable operation with a speed range of 100–2000 RPM and maximum torque of 0.16 Nm.

Flexible shaft compatibility

The keyless chuck system supports shafts between 1–10 mm, allowing quick installation and easy replacement of different stirring tools.

Reliable laboratory mixing

Designed for liquids and low viscosity materials, the IMS-01 ensures stable and repeatable mixing performance in research and laboratory environments.

Model Description: Basic Low Torque Model
Motor: Brushless DC motor
Rated Power: 50 W
Rated Current: 3.3 A
Rated Voltage: 24 V
Maximum Torque: 0.16 Nm
Speed Range: 100–2000 RPM
Operation: Digital control via touchscreen
Speed Accuracy: ±2%
Maximum Viscosity: 10,000 mPa.s
Maximum Stirring Volume: 13 L (H₂O)
Recipe/Recall Mode: No
Buzzer Option: No
Stirring Direction: CW
Chuck Shaft Range: 1–10 mm
Impeller Shaft Length: 27, 47 cm
Timer: Yes
Power Supply: 100–240 VAC, 50/60 Hz
Dimensions: 250 × 756 × 327.8 mm
Weight: 7 kg (15.4 lb)
