IPS-14 SERIES INDEPENDENT DOUBLE CHANNEL SYRINGE PUMPS

The Inovenso IPS-14 Series multi-channel syringe pump is designed for precise, synchronized fluid delivery across dual channels, making it ideal for research and industrial applications.

Advantages of a Multi-Channel Syringe Pump

A multi-channel syringe pump allows synchronized, accurate fluid delivery across multiple syringes, ideal for comparative testing and complex research setups.

Visit inovenso.com for more syringe pump technologies.

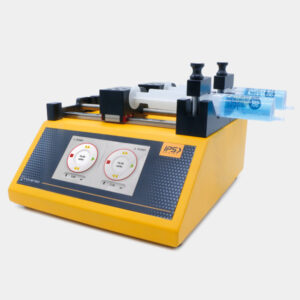

Inovenso IPS-14 independent dual-channel syringe pump for versatile fluid control

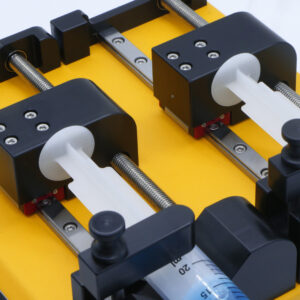

IPS-14 syringe pump with dual-channel operation and precise flow delivery

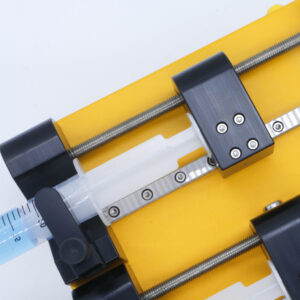

Advanced syringe pump IPS-14 for complex laboratory fluid handling

IPS-14 Multi-Channel Syringe Pump for Versatile Fluid Control

Independent dual-channel syringe pump for versatile fluid control

IPS-14 Multi-Channel Syringe Pump for Versatile Fluid Control
The IPS-14 multi-channel syringe pump is a sophisticated dual-channel device designed to meet complex fluid-handling requirements in various industries. With its precision engineering and innovative features, the IPS-14 multi-channel syringe pump ensures reliable performance and precise control over fluid delivery processes.

Key Features of the IPS-14 Multi-Channel Syringe Pump:

  • Independent Syringe Channels for simultaneous operation of different fluids

  • Wide Syringe Compatibility — from Hamilton 0.5 μL to Monoject 140 mL

  • Precise Flow Control with stepper motor and Microstep Drive

  • Intuitive Touch Interface and adaptive pumping control

Key Features:

  • Independent Syringe Channels: Equipped with two independent syringe channels, the IPS-14 allows for simultaneous operation of different fluids or independent control over each channel. This feature enhances flexibility and efficiency in multi-channel applications.
  • Wide Syringe Compatibility: The IPS-14 supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements.
  • Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14 ensures precise and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep.
  • Intuitive Interface: The IPS-14 is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control.

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: No
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 200 mm, Length (L): 257 mm, Height (H): 137 mm
  • Weight: 3.3 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)
Technical Datasheet
User Manual
Buy Now

IPS-14R Multi-Channel Syringe Pump with Fluid Withdrawal Functionality

Independent dual-channel pump featuring fluid withdrawal functionality

IPS-14R Multi-Channel Syringe Pump with Fluid Withdrawal Functionality
The IPS-14R multi-channel syringe pump provides precise and reliable fluid handling for demanding applications. Each channel operates independently, offering flexibility and efficiency for research and industrial workflows.

This advanced dual-channel multi-channel syringe pump enables synchronized or independent operation, supporting glass, plastic, and steel syringes across a wide flow range. The intuitive LCD interface makes it simple to program and monitor both channels.Key Features:

  • Independent Syringe Channels: Featuring two independent syringe channels, the IPS-14R allows simultaneous operation of different fluids or separate control over each channel. This feature enhances flexibility and efficiency in multi-channel applications.
  • Wide Syringe Compatibility: The IPS-14R accommodates a wide range of syringe types, including glass, plastic, and steel. It supports syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements.
  • Precise Flow Control: With a broad flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14R ensures accurate and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, enables precise control over flow rates with a resolution of 357 nm/μstep.
  • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14R offers an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: Users can adjust flow rates even during the pumping process, allowing for fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid delivery tasks with flexibility and control.

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: No
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 211 mm, Length (L): 257 mm, Height (H): 137 mm
  • Weight: 3.6 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)
Technical Datasheet
User Manual
Buy Now
IPS-14R multi-channel syringe pump

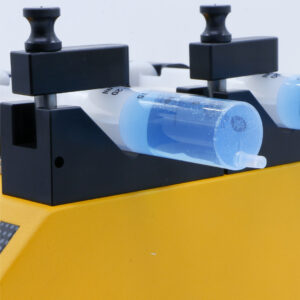

IPS-14R syringe pump for precise and reliable dual-channel fluid handling

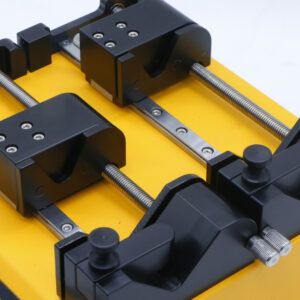

Inovenso IPS-14R dual-channel syringe pump with fluid withdrawal functionality

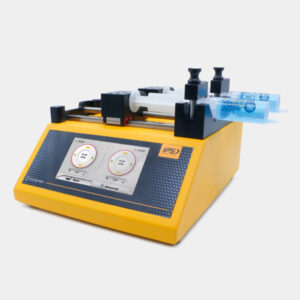

Advanced laboratory syringe pump IPS-14 with wide flow range

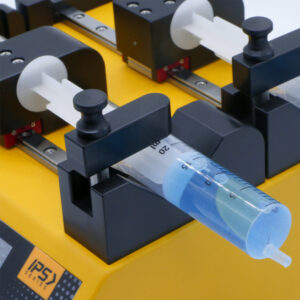

Inovenso IPS-14S independent dual-channel syringe pump with recipe saving

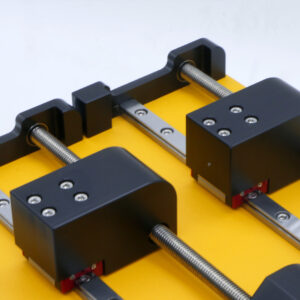

IPS-14S multi-channel syringe pump

IPS-14S Multi-Channel Syringe Pump with Recipe Saving and Recall

Independent dual-channel pump with receipt saving and recall capability

IPS-14S Multi-Channel Syringe Pump with Recipe Saving and Recall
The IPS-14S multi-channel syringe pump is an advanced dual-channel device designed for research and industry. It delivers precise, programmable flow control with intuitive software and recipe management functions.

Users can save and recall up to 5 recipes, repeat them up to 50 cycles, and fine-tune parameters during operation. The IPS-14S multi-channel syringe pump combines precision, flexibility, and repeatability for consistent results.

Key Features:

  • Independent Syringe Channels: The IPS-14S features two independent syringe channels, allowing simultaneous operation of different fluids or separate control over each channel. This versatility enables efficient handling of complex fluid delivery tasks.
  • Wide Syringe Compatibility: Compatible with glass, plastic, and steel syringes, the IPS-14S supports syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm). This broad compatibility provides flexibility to users for various volume requirements.
  • Precise Flow Control: With a flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-14S ensures accurate and consistent fluid delivery. Its stepper motor and microcontroller with Microstep Drive technology offer precise control over flow rates with a resolution of 357 nm/μstep.
  • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14S provides an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency.
  • Adaptive Pumping: The IPS-14S allows for adjustable flow rates even during the pumping process, enabling users to fine-tune parameters for optimal performance. This adaptability ensures precise handling of fluid delivery tasks with flexibility and control.

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: Yes (Wi-Fi optional)
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 200 mm, Length (L): 257 mm, Height (H): 137 mm
  • Weight: 3.3 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)

Additional Features:

  • 5 Steps Operation Mode: Enables users to program up to 5 different steps for precise fluid handling.
  • Saving and Recalling Recipes: Allows users to save and recall up to 5 recipes for convenient operation.
  • Repeating Cycles: Capable of repeating recipes up to 50 cycles, enhancing efficiency in repetitive tasks.
Technical Datasheet
User Manual
Buy Now

IPS-14RS Multi-Channel Syringe Pump with Withdrawal and Recipe Control

Independent dual-channel pump with both withdrawal and receipt saving features

IPS-14RS Multi-Channel Syringe Pump — Infuse & Withdraw with Recipe Control
The IPS-14RS multi-channel syringe pump offers both infusion and withdrawal control with dual-channel precision. Designed for advanced research setups, it ensures stable performance and accurate fluid handling in every task.

This model combines dual-mode operation with adaptive pumping, giving users flexibility and precision for various lab and industrial applications. Each IPS-14RS multi-channel syringe pump supports high-resolution control, wide syringe compatibility, and easy programmability.

Key Features:

  • Independent Syringe Channels: Featuring two independent syringe channels, the IPS-14RS allows for simultaneous operation of different fluids or independent control over each channel. This capability enhances flexibility and efficiency in fluid handling tasks.
  • Wide Syringe Compatibility: Compatible with glass, plastic, and steel syringes, the IPS-14RS accommodates syringes ranging from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm). This versatility enables users to handle various volumes with ease.
  • Precise Flow Control: The IPS-14RS offers precise control over flow rates, with a range from 17.89 picoliters per minute to 121.51 milliliters per minute. Equipped with a stepper motor and microcontroller featuring Microstep Drive technology, it ensures accurate and consistent fluid delivery.
  • Intuitive Interface: With a 4.3-inch Resistive Touch TFT LCD screen and user-friendly microcontroller software, the IPS-14RS provides an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing productivity.
  • Adaptive Pumping: Users can adjust flow rates even during the pumping process, allowing for fine-tuning of parameters for optimal performance. This adaptability ensures precise fluid handling for a wide range of applications.

Technical Specifications:

  • Motor Type: Stepper Motor
  • Linear Force Connectors: No
  • Recipe Save-Recall: Yes (Wi-Fi optional)
  • Power Supply: 12 VDC 1A (110-240 VAC adapter included)
  • Dimensions: Width (W): 211 mm, Length (L): 257 mm, Height (H): 137 mm
  • Weight: 3.6 kg

Environmental Specifications:

  • Operating Temperature: Between -10°C and 50°C
  • Storage Temperature: Between -30°C and 85°C
  • Operating Humidity: RH 10% – RH 90% (not condensed)
  • Storage Humidity: RH 10% – RH 90% (not condensed)

Additional Features:

  • 5 Steps Operation Mode: Allows programming of up to 5 different steps for precise fluid handling.
  • Saving and Recalling Recipes: Users can save and recall up to 5 recipes for convenient operation.
  • Repeating Cycles: Capable of repeating recipes up to 50 cycles, enhancing efficiency in repetitive tasks.
Technical Datasheet
User Manual
Buy Now

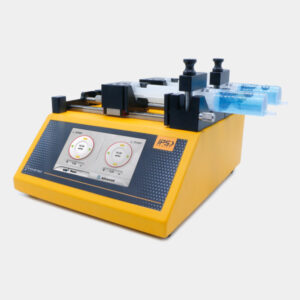

IPS-14 multi-channel syringe pump

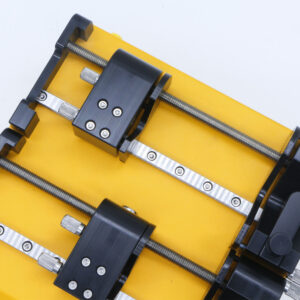

IPS-14RS multi-channel syringe pump

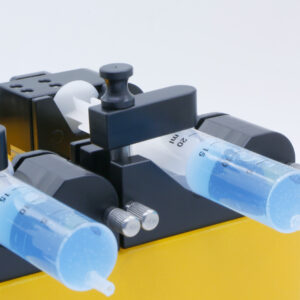

Advanced laboratory syringe pump IPS-14 with wide flow range

The IPS-14 Series multi-channel syringe pump lineup by Yellow Labware provides researchers with precise, dual-channel fluid control for complex laboratory tasks. Each multi-channel syringe pump in this series is engineered for accuracy, reliability, and versatility — making it ideal for both academic and industrial applications.
